CCNA Access List Sim 2

CCNA Access List Sim 2

9tutq — Sat, 15 Feb 2014 10:38:35 +0000

Question

A network associate is adding security to the configuration of the Corp1 router. The user on host C should be able to use a web browser to access financial information from the Finance Web Server. No other hosts from the LAN nor the Core should be able to use a web browser to access this server. Since there are multiple resources for the corporation at this location including other resources on the Finance Web Server, all other traffic should be allowed.

The task is to create and apply a numbered access-list with no more than three statements that will allow ONLY host C web access to the Finance Web Server. No other hosts will have web access to the Finance Web Server. All other traffic is permitted.
Access to the router CLI can be gained by clicking on the appropriate host.

All passwords have been temporarily set to “cisco”.
The Core connection uses an IP address of 198.18.196.65
The computers in the Hosts LAN have been assigned addresses of 192.168.33.1 – 192.168.33.254
Host A 192.168.33.1
Host B 192.168.33.2
Host C 192.168.33.3
Host D 192.168.33.4
The servers in the Server LAN have been assigned addresses of 172.22.242.17 – 172.22.242.30
The Finance Web Server is assigned an IP address of 172.22.242.23.
The Public Web Server is assigned an IP address of 172.22.242.17

Answer and Explanation

(Note: If you are not sure how to use access-list, please check out my access-list tutorial at: http://www.9tut.com/access-list-tutorial, also some modifications about the access-list have been reported so you should read the “Some modifications” section at the end of this question to understand more. You can also download this sim to practice (open with Packet Tracer) here: http://www.9tut.com/download/9tut.com_Access-list_sim2.pkt

Corp1>enable (you may enter “cisco” as it passwords here)

We should create an access-list and apply it to the interface which is connected to the Server LAN because it can filter out traffic from both Sw-2 and Core networks. The Server LAN network has been assigned addresses of 172.22.242.17 – 172.22.242.30 so we can guess the interface connected to them has an IP address of 172.22.242.30 (.30 is the number shown in the figure). Use the “show running-config” command to check which interface has the IP address of 172.22.242.30.

Corp1#show running-config

We learn that interface FastEthernet0/1 is the interface connected to Server LAN network. It is the interface we will apply our access-list (for outbound direction).

Corp1#configure terminal

Our access-list needs to allow host C – 192.168.33.3 to the Finance Web Server 172.22.242.23 via web (port 80)

Corp1(config)#access-list 100 permit tcp host 192.168.33.3 host 172.22.242.23 eq 80

Deny other hosts access to the Finance Web Server via web

Corp1(config)#access-list 100 deny tcp any host 172.22.242.23 eq 80

All other traffic is permitted

Corp1(config)#access-list 100 permit ip any any

Apply this access-list to Fa0/1 interface (outbound direction)

Corp1(config)#interface fa0/1
Corp1(config-if)#ip access-group 100 out

Notice: We have to apply the access-list to Fa0/1 interface (not Fa0/0 interface) so that the access-list can filter traffic coming from both the LAN and the Core networks. If we apply access list to the inbound interface we can only filter traffic from the LAN network.

In the real exam, just click on host C and open its web browser. In the address box type http://172.22.242.23 to check if you are allowed to access Finance Web Server or not. If your configuration is correct then you can access it.

Click on other hosts (A, B and D) and check to make sure you can’t access Finance Web Server from these hosts.

Finally, save the configuration

Corp1(config-if)#end
Corp1#copy running-config startup-config

(This configuration only prevents hosts from accessing Finance Web Server via web but if this server supports other traffic – like FTP, SMTP… then other hosts can access it, too.)

Notice: In the real exam, you might be asked to allow other host (A, B or D) to access the Finance Web Server so please read the requirement carefully.

Some modifications:

Modification 1:

permit host B from accessing finance server	access-list 100 permit ip host 192.168.33.2 host 172.22.242.23
deny host B from accessing other servers (not the whole network)	access-list 100 deny ip host 192.168.33.2 172.22.242.16 0.0.0.15
permit everything else	access-list 100 permit ip any any

Modification 2:

Only allow Host C to to access the financial server	access-list 100 permit ip host 192.168.33.3 host 172.22.242.23
Not allow anyone else in any way communicate with the financial server	access-list 100 deny ip any host 172.22.242.23
Allow all other traffic	access-list 100 permit ip any any

Modification 3:

- Host C should be able to use a web browser(HTTP)to access the Finance Web Server	access-list 100 permit tcp host 192.168.33.3 host 172.22.242.23 eq 80
- Other types of access from host C to the Finance Web Server should be blocked - All access from hosts in the Core or local LAN to the Finance Web Server should be blocked	access-list 100 deny ip any host 172.22.242.23 (because the requirement says we can not use more than 3 statements so we have to use “any” here for the hosts in the Core and hosts in local LAN)
- All hosts in the Core and local LAN should be able to access the Public Web Server *	access-list 100 permit ip any host (If the question asks this, surely it has to give you the IP of Public Web Server) but in the exam you should use “access-list 100 permit ip any any”

Modification 4:

Host C should be able to use a web browser to access the financial web server	access-list 100 permit tcp host 192.168.33.3 host 172.22.242.23 eq 80
Other types of access from host C to the finance web server should be blocked	access-list 100 deny ip host 192.168.33.3 host 172.22.242.23
All hosts in the core and on the local LAN should be able to access the Public web server *	access-list 100 permit ip any host (The IP of Public Web Server will surely be given in this question) but in the exam you should use “access-list 100 permit ip any any”

* There are some reports about the command of “All hosts in the core and on the local LAN should be able to access the Public web server” saying that the correct command should be “access-list 100 permit ip any any”, not “access-list 100 permit ip any host (IP of Public Web Server)”. Although I believe the second command is better but maybe you should use the first command “access-list 100 permit ip any any” instead as some reports said they got 100% when using this command (even if the question gives you the IP address of Public Web Server). It is a bug in this sim.

(Note: Don’t forget to apply this access list to the suitable interface or you will lose points
interface fa0/1
ip access-group 100 out

And in the exam, they may slightly change the requirements, for example host A, host B instead of host C… so make sure you read the requirement carefully and use the access-list correctly)

I created this sim in Packet Tracer v5.2.1 so you can practice with it. You will need new version of Packet Tracer to open it (v5.1+).

Download this sim here

Notice: After typing the commands above, if you make a “ping” from other hosts (PC0, PC1, PC3) then PC4 (Finance Web Server) can still reply because we just filter HTTP traffic, not ICMP traffic. To generate HTTP traffic, select “Web Browser” in the “Desktop” tab of these PCs. When a web browser opens, type the IP address of Finance Web Server and you can see how traffic flows in Simulation Mode.

And notice that in the initial configuration of this sim the Core network can ping Finance Web Server. We have to create an access-list that can filter this traffic too.

Other lab-sims on this site:

CCNA Access List Sim

9tutq — Mon, 10 Feb 2014 10:37:45 +0000

Question

An administrator is trying to ping and telnet from Switch to Router with the results shown below:

Switch>
Switch> ping 10.4.4.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.4.4.3,timeout is 2 seconds:
.U.U.U
Success rate is 0 percent (0/5)
Switch>
Switch> telnet 10.4.4.3
Trying 10.4.4.3 …
% Destination unreachable; gateway or host down
Switch>

Click the console connected to Router and issue the appropriate commands to answer the questions.

Answer and Explanation

Note: If you are not sure about Access-list, please read my Access-list tutorial. You can also download this sim to practice (open with Packet Tracer) here: http://www.9tut.com/download/9tut.com_CCNA_Access_List_Sim.pkt

For this question we only need to use the show running-config command to answer all the questions below

Router>enable
Router#show running-config

Question 1:

Which will fix the issue and allow ONLY ping to work while keeping telnet disabled?

A – Correctly assign an IP address to interface fa0/1
B – Change the ip access-group command on fa0/0 from “in” to “out”
C – Remove access-group 106 in from interface fa0/0 and add access-group 115 in.
D – Remove access-group 102 out from interface s0/0/0 and add access-group 114 in
E – Remove access-group 106 in from interface fa0/0 and add access-group 104 in

Answer: E

Explanation:

Let’s have a look at the access list 104:

The question does not ask about ftp traffic so we don’t care about the two first lines. The 3rd line denies all telnet traffic and the 4th line allows icmp traffic to be sent (ping). Remember that the access list 104 is applied on the inbound direction so the 5th line “access-list 104 deny icmp any any echo-reply” will not affect our icmp traffic because the “echo-reply” message will be sent over the outbound direction.

Question 2:

What would be the effect of issuing the command ip access-group 114 in to the fa0/0 interface?

A – Attempts to telnet to the router would fail
B – It would allow all traffic from the 10.4.4.0 network
C – IP traffic would be passed through the interface but TCP and UDP traffic would not
D – Routing protocol updates for the 10.4.4.0 network would not be accepted from the fa0/0 interface

Answer: B

Explanation:

From the output of access-list 114: access-list 114 permit ip 10.4.4.0 0.0.0.255 any we can easily understand that this access list allows all traffic (ip) from 10.4.4.0/24 network

Question 3:

What would be the effect of issuing the command access-group 115 in on the s0/0/1 interface?

A – No host could connect to Router through s0/0/1
B – Telnet and ping would work but routing updates would fail.
C – FTP, FTP-DATA, echo, and www would work but telnet would fail
D – Only traffic from the 10.4.4.0 network would pass through the interface

Answer: A

Explanation:

First let’s see what was configured on interface S0/0/1:

Recall that each interface only accepts one access-list, so when using the command “ip access-group 115 in” on the s0/0/1 interface it will overwrite the initial access-list 102. Therefore any telnet connection will be accepted (so we can eliminate answer C).
B is not correct because if telnet and ping can work then routing updates can, too.
D is not correct because access-list 115 does not mention about 10.4.4.0 network. So the most reasonable answer is A.

But here raise a question…

The wildcard mask of access-list 115, which is 255.255.255.0, means that only host with ip addresses in the form of x.x.x.0 will be accepted. But we all know that x.x.x.0 is likely to be a network address so the answer A: “no host could connect to Router through s0/0/1” seems right…

But what will happen if we don’t use a subnet mask of 255.255.255.0? For example we can use an ip address of 10.45.45.0 255.255.0.0, such a host with that ip address exists and we can connect to the router through that host. Now answer A seems incorrect!

Please comment if you have any idea for this sim!

Other lab-sims on this site:

CCNA NAT SIM Question 2

9tutq — Wed, 05 Feb 2014 10:35:21 +0000

Question

You work as a network technician at 9tut.com. Study the exhibit carefully. You are required to perform configurations to enable Internet access. The Router ISP has given you six public IP addresses in the 198.18.32.65 198.18.32.70/29 range.
9tut.com has 62 clients that needs to have simultaneous internet access. These local hosts use private IP addresses in the 192.168.6.65 – 192.168.6.126/26 range.
You need to configure Router1 using the PC1 console.
You have already made basic router configuration. You have also configured the appropriate NAT interfaces; NAT inside and NAT outside respectively.
Now you are required to finish the configuration of Router1.

Solution

Note: If you are not sure how NAT & PAT work, please read my Network Address Translation NAT Tutorial. You can download a similar sim to practice here: http://www.9tut.com/download/9tut.com_CCNA_NAT_sim_question.zip

The company has 62 hosts that need to access the internet simultaneously but we just have 6 public IP addresses from 198.18.32.65 to 198.18.32.70/29 => we have to use NAT overload (or PAT)

Double click on PC1 to access Router1′s command line interface

Router1>enable
Router1#configure terminal

Create a NAT pool of global addresses to be allocated with their netmask (notice that /29 = 248)

Router1(config)#ip nat pool mypool 198.18.32.65 198.18.32.70 netmask 255.255.255.248

Create a standard access control list that permits the addresses that are to be translated

Router1(config)#access-list 1 permit 192.168.6.64 0.0.0.63

Establish dynamic source translation, specifying the access list that was defined in the prior step

Router1(config)#ip nat inside source list 1 pool mypool overload

This command translates all source addresses that pass access list 1, which means a source address from 192.168.6.65 to 192.168.6.126, into an address from the pool named mypool (the pool contains addresses from 198.18.32.65 to 198.18.32.70)

Overload keyword allows to map multiple IP addresses to a single registered IP address (many-to-one) by using different ports

The question said that appropriate interfaces have been configured for NAT inside and NAT outside statements.

This is how to configure the NAT inside and NAT outside, just for your understanding:

Router1(config)#interface fa0/0
Router1(config-if)#ip nat inside

Router1(config-if)#exit

Router1(config)#interface s0/0
Router1(config-if)#ip nat outside

Before leaving Router1, you should save the configuration:

Router1(config)#end (or Router1(config-if)#end)
Router1#copy running-config startup-config

Check your configuration by going to PC2 and type:

C:\>ping 192.0.2.114

The ping should work well and you will be replied from 192.0.2.114

Other lab-sims on this site:

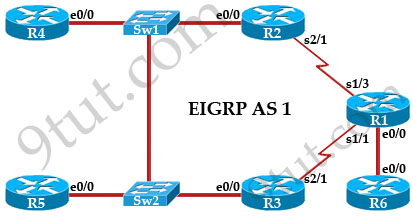

EIGRP Troubleshooting SIM:

Practice Real CCNA Labs with Packet Tracer Simulator

9tutq — Sun, 02 Feb 2014 10:35:52 +0000

Well, the title said it all. Here are some screenshots about the labs in Packet Tracer Simulator:

CCNA Drag And Drop SIM:

CCNA EIGRP SIM:

Configuration SIM:

Please say thanks to Runiya, who created these lab-sim questions on Packet Tracer. Now you can practice with real labs in your CCNA exam!

The lab file includes:

+ CCNA Implementation sim
+ CCNA drag and drop sim
+ CCNA EIGRP sim
+ CCNA NAT sim
+ CCNA RIP Configuration sim
+ CCNA Access-list sim
+ CCNA Access-list sim 2
+ CCNA VTP sim
+ CCNA EIGRP Troubleshooting sim

Link to download these labs

Download lab files from 9tut

You will need Packet Tracer version 5.3 or above to open these files. It’s totally free! You can download this software but you need to register first or you can find a mirror download with google (with keyword “download packet tracer”)

Please notice that in real exam, you have to click on host (PC) to access command-line-interface of the router, not the router itself.

CCNA Implementation SIM

9tutq — Sat, 01 Feb 2014 10:34:51 +0000

This topology contains 3 routers and 1 switch. Complete the topology.

Drag the appropriate device icons to the labeled Device
Drag the appropriate connections to the locations labeled Connections.
Drag the appropriate IP addresses to the locations labeled IP address

(Hint: use the given host addresses and Main router information)
To remove a device or connection, drag it away from the topology.

Use information gathered from the Main router to complete the configuration of any additional routers. No passwords are required to access the Main router. The config terminal command has been disabled for the HQ router. The router does not require any configuration.

Configure each additional router with the following:

Configure the interfaces with the correct IP address and enable the interfaces.
Set the password to allow console access to consolepw
Set the password to allow telnet access to telnetpw
Set the password to allow privilege mode access to privpw

Note: Because routes are not being added to the configurations, you will not be able to ping through the internetwork.
All devices have cable autosensing capabilities disabled.
All hosts are PC’s

Answer and explanation

Note: You can download this sim to practice here: http://www.9tut.com/download/9tut.com_CCNA_Implementation_question.zip

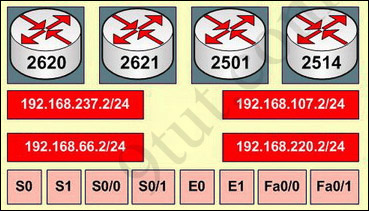

Specify appropriate devices and drag them on the “Device” boxes

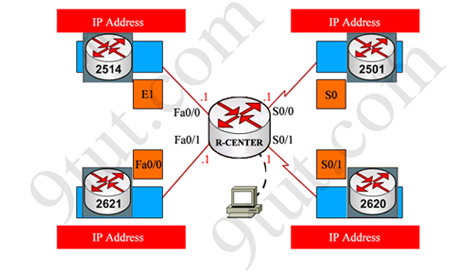

For the device at the bottom-right box, we notice that it has 2 interfaces Fa0/2 and Fa0/4; moreover the link connects the PC on the right with the device on the bottom-right is a straight-through link -> it is a switch

The question stated that this topology contains 3 routers and 1 switch -> two other devices are routers

Place them on appropriate locations as following:

(Host D and host E will be automatically added after placing two routers. Click on them to access neighboring routers)

Specify appropriate connections between these devices:

+ The router on the left is connected with the Main router through FastEthernet interfaces: use a crossover cable
+ The router on the right is connected with the Main router through Serial interfaces: use a serial cable
+ The router on the right and the Switch: use a straight-through cable
+ The router on the left and the computer: use a crossover cable

(To remember which type of cable you should use, follow these tips:

- To connect two serial interfaces of 2 routers we use serial cable
– To specify when we use crossover cable or straight-through cable, we should remember:
Group 1: Router, Host, Server
Group 2: Hub, Switch
One device in group 1 + One device in group 2: use straight-through cable
Two devices in the same group: use crossover cable

For example: we use straight-through cable to connect switch to router, switch to host, hub to host, hub to server… and we use crossover cable to connect switch to switch, switch to hub, router to router, host to host… )

Assign appropriate IP addresses for interfaces:

From Main router, use show running-config command:

(Notice that you may see different IP addresses in the real CCNA exam, the ones shown above are just used for demonstration)

From the output we learned that the ip address of Fa0/0 interface of the Main router is 192.168.152.177/28. This address belongs to a subnetwork which has:

Increment: 16 (/28 = 255.255.255.240 or 1111 1111.1111 1111.1111 1111.1111 0000)
Network address: 192.168.152.176 (because 176 = 16 * 11 and 176 < 177)
Broadcast address: 192.168.152.191 (because 191 = 176 + 16 – 1)

And we can pick up an ip address from the list that belongs to this subnetwork: 192.168.152.190 and assign it to the Fa0/0 interface the router on the left

Use the same method for interface Serial0/0 with an ip address of 192.168.152.161

Increment: 16
Network address: 192.168.152.160 (because 160 = 16 * 10 and 160 < 161)
Broadcast address: 192.168.152.175 (because 176 = 160 + 16 – 1)

-> and we choose 192.168.152.174 for Serial0/0 interface of the router on the right

Interface Fa0/1 of the router on the left

IP (of the computer on the left) : 192.168.152.129/28

Increment: 16
Network address: 192.168.152.128 (because 128 = 16 * 8 and 128 < 129)
Broadcast address: 192.168.152.143 (because 143 = 128 + 16 – 1)

-> we choose 192.168.152.142 from the list

Interface Fa0/0 of the router on the right

IP (of the computer on the left) : 192.168.152.225/28

Increment: 16
Network address: 192.168.152.224 (because 224 = 16 * 14 and 224 < 225)
Broadcast address: 192.168.152.239 (because 239 = 224 + 16 – 1)

-> we choose 192.168.152.238 from the list

Let’s have a look at the picture below to summarize

Configure two routers on the left and right with these commands:

Router1 = router on the left

Assign appropriate IP addresses to Fa0/0 & Fa0/1 interfaces:

Router1>enable
Router1#configure terminal
Router1(config)#interface fa0/0
Router1(config-if)#ip address 192.168.152.190 255.255.255.240
Router1(config-if)#no shutdown

Router1(config-if)#interface fa0/1
Router1(config-if)#ip address 192.168.152.142 255.255.255.240
Router1(config-if)#no shutdown

Set passwords (configure on two routers)

+ Console password:

Router1(config-if)#exit
Router1(config)#line console 0
Router1(config-line)#password consolepw
Router1(config-line)#login
Router1(config-line)#exit

+ Telnet password:

Router1(config)#line vty 0 4
Router1(config-line)#password telnetpw
Router1(config-line)#login
Router1(config-line)#exit

+ Privilege mode password:

Router1(config)#enable password privpw

Save the configuration:

Router1(config)#exit
Router1#copy running-config startup-config

Configure IP addresses of Router2 (router on the right)

Router2>enable
Router2#configure terminal
Router2(config)#interface fa0/0
Router2(config-if)#ip address 192.168.152.238 255.255.255.240
Router2(config-if)#no shutdown

Router2(config-if)#interface serial0/0
Router2(config-if)#ip address 192.168.152.174 255.255.255.240
Router2(config-if)#no shutdown

and set console, telnet and privilege mode passwords for Router2 as we did for Router1, remember to save the configuration when you finished

Other lab-sims on this site:

CCNA EIGRP LAB Question

9tutq — Sat, 25 Jan 2014 10:33:41 +0000

Question

After adding R3 router, no routing updates are being exchanged between R3 and the new location. All other inter connectivity and Internet access for the existing locations of the company are working properly.

The task is to identify the fault(s) and correct the router configuration to provide full connectivity between the routers.

Access to the router CLI can be gained by clicking on the appropriate host. All passwords on all routers are cisco.

IP addresses are listed in the chart below.

R1 Fa0/0: 192.168.77.33 S1/0: 198.0.18.6 S0/1: 192.168.60.25 S0/0: 192.168.36.13	R2 Fa0/0: 192.168.60.97 Fa0/1: 192.168.60.113 S0/0: 192.168.36.14
R3 Fa0/0: 192.168.77.34 Fa0/1: 192.168.60.65 Fa1/0: 192.168.60.81	R4 Fa0/0: 192.168.60.129 Fa0/1: 192.168.60.145 S0/1: 192.168.60.26

Answer and explanation

(Note: If you are not sure how EIGRP works, please read my EIGRP tutorial: http://www.9tut.com/eigrp-routing-protocol-tutorial. Note: You can download this sim to practice here: http://www.9tut.com/download/9tut.com_CCNA_EIGRP_sim_question.zip)

We should check the configuration of the new added router first because it does not function properly while others work well. From the command line interface of R3 router, enter the show running-config command

From the output above, we know that this router was wrongly configured with an autonomous number (AS) of 22. When the AS numbers among routers are mismatched, no adjacency is formed.

(You should check the AS numbers on other routers for sure)

To solve this problem, we simply re-configure router R3 with the following commands:

R3>enable (you have to enter cisco as its password here)

R3#configure terminal

R3(config)#no router eigrp 22

R3(config)#router eigrp 212

R3(config-router)#network 192.168.60.0

R3(config-router)#network 192.168.77.0

R3(config-router)#no auto-summary

R3(config-router)#end

R3#copy running-config startup-config

Check R1 router with the show running-config command:

Notice that it is missing a definition to the network R3. Therefore we have to add it so that it can recognize R3 router

R1>enable (you have to enter cisco as its password here)

R1#configure terminal

R1(config)#router eigrp 212

R1(config-router)#network 192.168.77.0

R1(config-router)#end

R1#copy running-config startup-config

Now the whole network will work well. You should check again with ping command from router R3 to other routers!

Modifications:

Maybe in this EIGRP Sim you will see the “passive-interface …” command somewhere in R1 configuration. If the link between R1 to R2; or R1 to R3; or R1 to R4) routers has the “passive interface” then we have to remove it with the “no passive-interface …” command because it prevents EIGRP update from being sent on that interface. But if the “passive interface” is applied to the link between R1 and ISP router like this:

R1:

!
router eigrp 212
passive-interface s1/0
!

then we just leave it. Don’t use the “no passive-interface s1/0″ on R1 because the link between R1 & ISP doesn’t need EIGRP to run on it. A static route from R1 to ISP & “ip default-network” command in R1 are correct so that all the routers (R1, R2, R3, R4) can access the Internet.

(Note: The “ip default-network” command in R1 will advertise the static route of R1 (to go to the Internet) to other routers (R2,R3,R4) so that they can access the Internet too). In the exam you will see these lines in R1 configuration:

!
ip default-network 198.0.18.0
ip route 0.0.0.0 0.0.0.0 198.0.18.5
!

If you want to learn more about “ip default-network” command please read: http://www.cisco.com/en/US/tech/tk365/technologies_tech_note09186a0080094374.shtml

I read recent comments and realized that you will see the “passive-interface” in the link between R1 & ISP router so just leave it.

Note: Also some readers confuse about if we should use the wildcard masks on the “network” statements under EIGRP process or not. For example should we use:

router eigrp 212
network 192.168.77.0 0.0.0.3

The answer is: we can use wildcard masks or not, it does not matter. Not having a wildcard mask does not make the routes conflicting. The “network …” command in EIGRP (and OSPF, RIP) does not means “advertise this network” but means “If I has interface(s) belongs to this network please turn on EIGRP on that interface. Therefore when you don’t use wildcard mask EIGRP will turn on EIGRP on all interfaces that belongs to the network you specify in the “network …” command.

You should only use wildcard mask on EIGRP if you have 2 or more interfaces that belong to the same major networks but you don’t want to run EIGRP on all of them. For example if your router has 2 interfaces whose IP addresses are 192.168.30.1/28 and 192.168.30.17/28 but you only want to run EIGRP on the first interface, you can type “network 192.168.30.0 0.0.0.15″ under EIGRP process.

Other lab-sims on this site:

CCNA Drag and Drop SIM Question

9tutq — Wed, 15 Jan 2014 10:34:22 +0000

Question

You have been hired by Specialty Hardware Incorporated to document the layout of the network. Complete the following tasks: Complete the network topology shown in the graphic by dragging the labels below with the appropriate router types, interface types, and IP addresses to the graphic . Find the information you need by using the router console attached to the R-CENTER router.

Answer and explanation

Note: You can download this sim to practice here: http://www.9tut.com/download/9tut.com_CCNA_drag_and_drop_sim_question.pkt

This is the simplest lab question in four labs you see in the real CCNA exam. First we should identify the types of these routers by using the show cdp neighbors command:

There are 3 columns we should pay more attention to:

+ Local Interface: the interface on the device you are using “show cdp neighbors” command. In this case it is the interface of R-CENTER router

+ Platform: the platform of neighbor device

+ Port ID: the neighbor device’s port or interface on which the CDP packets are multicast

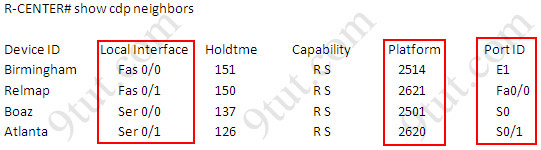

From the exhibit, the “Local Interface”, “Platform” and “Port ID” columns, we can identify where these four routers should be placed and their corresponding associated ports

Finally, use the show running-config command to find out the ip addresses of four interfaces on R-CENTER

And we can easily assign corresponding ip addresses to four neighbor routers, which are on the same network with R-CENTER router’s interfaces

Please remember in the real CCNA Exam the routers’ types, ip addresses and interfaces may be different! So make sure you understand how it works.

Other lab-sims on this site:

CCNA Configuration SIM Question

9tutq — Fri, 10 Jan 2014 10:32:45 +0000

Question:

To configure the router (R2-RC) click on the console host icon that is connected to a router by a serial console cable (shown in the diagram as a dashed black line)

CCNA Training Company recently installed a new router in their office. Complete the network installation by performing the initial router configurations and configuring RIPV2 routing using the router command line interface (CLI) on the R2-RC.

Name of the router is R2-RC
Enable-secret password is cisco1
The password to access user EXEC mode using the console is cisco2
The password to allow telnet access to the router is cisco3
IPV4 addresses must be configured as follows:
Ethernet network 209.165.202.128/27 – router has last assignable host address in subnet
Serial network is 192.0.2.16/28 – router has last assignable host address in the subnet. Interfaces should be enabled.
Router protocol is RIP V2

Attention :
In practical examinations, please note the following, the actual information will prevail.
1. Name of the router is xxx
2. Enable-secret password is xxx
3. Password to access user EXEC mode using the console is xxx
4. The password to allow telnet access to the router is xxx
5. IP information

Solution

(Note: If you are not sure how RIP works, please read my RIP tutorial: http://www.9tut.com/rip-routing-protocol-tutorial. Note: You can download this sim to practice here: http://www.9tut.com/download/9tut.com_CCNA_RIP_Configuration.zip)

1) Name the router:

Router>enable
Router#configure terminal
Router(config)#hostname R2-RC

2) Set secret password:

R2-RC(config)# enable secret cisco1

3) Set password for the console:

R2-RC(config)#line console 0
R2-RC(config-line)#password cisco2
R2-RC(config-line)#login
R2-RC(config-line)#exit

4) Set the Telnet password:

R2-RC(config)#line vty 0 4
R2-RC(config-line)#password cisco3
R2-RC(config-line)#login
R2-RC(config-line)#exit

5) Assign IP address for Ethernet interface (Fa0/0):

The Ethernet network 209.165.202.128/27 has:

Increment:32 (/27 = 255.255.255.224 or 1111 1111.1111 1111.1111 1111.1110 0000)
Network address: 209.165.202.128
Broadcast address: 209.165.202.159 (because 128 + 32 – 1 = 159)

Therefore the last assignable host address in this subnet is 209.165.202.158 and we will assign it to Fa0/0 interface with these commands:

R2-RC(config)# interface fa0/0
R2-RC(config-if)#ip address 209.165.202.158 255.255.255.224
R2-RC(config-if)#no shutdown
R2-RC(config-if)#exit

6) Assign IP address for Serial interface (S0/0/0):

Serial network 192.0.2.16/28 has:

Increment:16 (/28 = 255.255.255.240 or 1111 1111.1111 1111.1111 1111.1111 0000)
Network address: 192.0.2.16
Broadcast address: 192.0.2.31 (because 16 + 16 – 1 = 31)

So the last assignable host address in this subnet is 192.0.2.30. Finally we assign it to s0/0/0 interface:

R2-RC(config)# interface s0/0/0
R2-RC(config-if)#ip address 192.0.2.30 255.255.255.240
R2-RC(config-if)#no shutdown
R2-RC(config-if)#exit

7) Configure RIP v2 routing protocol:

R2-RC(config)#router rip
R2-RC(config-router)#version 2
R2-RC(config-router)#network 209.165.202.0
R2-RC(config-router)#network 192.0.2.0
R2-RC(config-router)#end
R2-RC#copy running-config startup-config

Note: We should use classful networks (209.165.202.0 & 192.0.2.0) when configuring RIP. If we use detailed networks (209.165.202.128 & 192.0.2.16) the router will automatically convert them into classful networks.

Other lab-sims on this site:

CCNA NAT SIM Question 1

9tutq — Sun, 05 Jan 2014 10:32:22 +0000

Question

A network associate is configuring a router for the CCNA Training company to provide internet access. The ISP has provided the company six public IP addresses of 198.18.184.105 198.18.184.110. The company has 14 hosts that need to access the internet simultaneously. The hosts in the CCNA Training company LAN have been assigned private space addresses in the range of 192.168.100.17 – 192.168.100.30.

The task is to complete the NAT configuration using all IP addresses assigned by the ISP to provide Internet access for the hosts in the Weaver LAN. Functionality can be tested by clicking on the host provided for testing.

Configuration information
router name – Weaver
inside global addresses – 198.18.184.105 198.18.184.110/29
inside local addresses – 192.168.100.17 – 192.168.100.30/28
number of inside hosts – 14

The following have already been configured on the router：

- The basic router configuration

- The appropriate interfaces have been configured for NAT inside and NAT outside

- The appropriate static routes have also been configured (since the company will be a stub network, no routing protocol will be required.)

- All passwords have been temporarily set to “cisco”

Solution

Note: If you are not sure how NAT & PAT work, please read my Network Address Translation NAT Tutorial. You can download this sim to practice here: http://www.9tut.com/download/9tut.com_CCNA_NAT_sim_question.zip

The CCNA Training company has 14 hosts that need to access the internet simultaneously but we just have 6 public IP addresses from 198.18.184.105 to 198.18.184.110/29. Therefore we have to use NAT overload (or PAT)

Double click on the Weaver router to open it

Router>enable
Router#configure terminal

First you should change the router’s name to Weaver

Router(config)#hostname Weaver

Create a NAT pool of global addresses to be allocated with their netmask (/29 = 255.255.255.248). There were reports that the simulator in the real exam did not accept “prefix-length” keryword so you should use “netmask” keyword.

Weaver(config)#ip nat pool mypool 198.18.184.105 198.18.184.110 netmask 255.255.255.248

Create a standard access control list that permits the addresses that are to be translated

Weaver(config)#access-list 1 permit 192.168.100.16 0.0.0.15

Establish dynamic source translation, specifying the access list that was defined in the prior step

Weaver(config)#ip nat inside source list 1 pool mypool overload

This command translates all source addresses that pass access list 1, which means a source address from 192.168.100.17 to 192.168.100.30, into an address from the pool named mypool (the pool contains addresses from 198.18.184.105 to 198.18.184.110)

Overload keyword allows to map multiple IP addresses to a single registered IP address (many-to-one) by using different ports

The question said that appropriate interfaces have been configured for NAT inside and NAT outside statements.

This is how to configure the NAT inside and NAT outside, just for your understanding:

Weaver(config)#interface fa0/0
Weaver(config-if)#ip nat inside

Weaver(config-if)#exit

Weaver(config)#interface s0/0
Weaver(config-if)#ip nat outside
Weaver(config-if)#end

Finally, we should save all your work with the following command:

Weaver#copy running-config startup-config

Check your configuration by going to “Host for testing” and type:

C:\>ping 192.0.2.114

The ping should work well and you will be replied from 192.0.2.114

Other lab-sims on this site:
